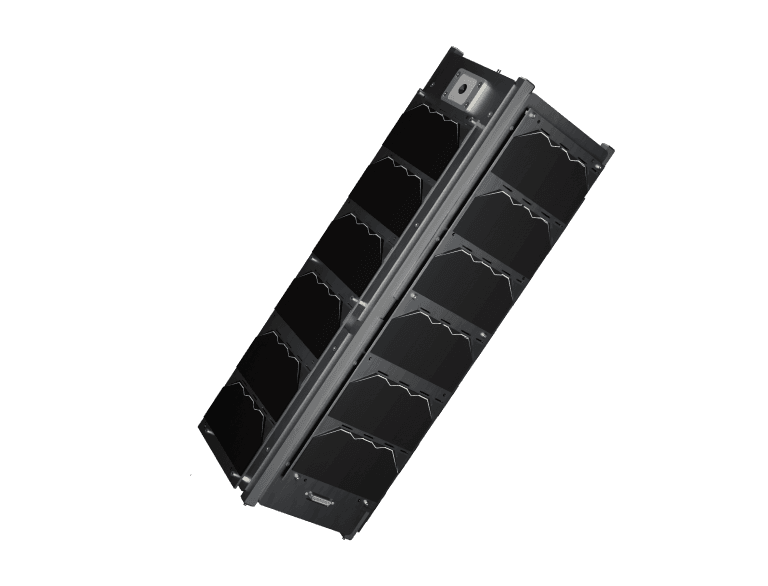

AX-03
AX-03
Form Factor
3U/4U CubeSat
Payload Volume
2U
Preconfigured for multiple applications, the 3U CubeSat assimilates flight-proven subsystems and advanced features:
OBC
SMART FUSION 2, ARM CORTEX M3
POWER BUSES
3.3V, 5V, CUSTOMIZABLE 5–12V + BATTERY RAW
COMMUNICATION
UHF, S-BAND, CCSDS COMPLIANT
PAYLOAD POWER
48W

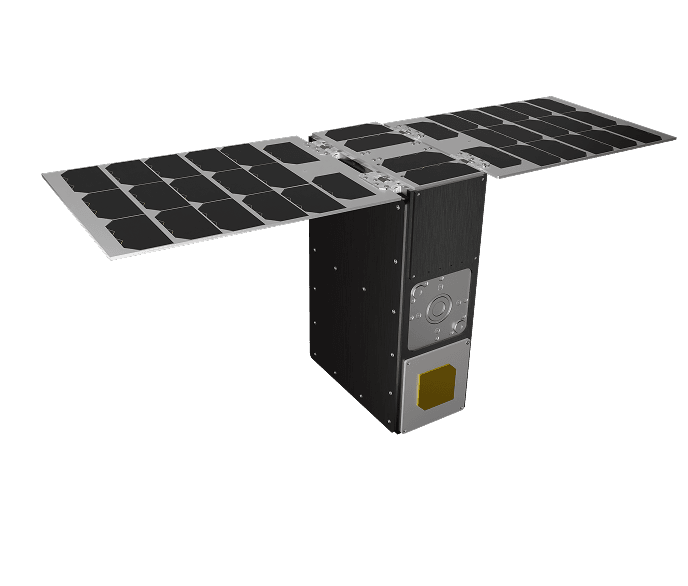

AX-06
AX-06
Form Factor
6/8U CubeSat
Payload Volume
5U
High-performance, high-TRL bus for commercial and scientific missions:
OBC
SMARTFUSION2, ARM CORTEX M3
POWER BUSES
3.3V, 5V, CUSTOMIZABLE 5–12V + BATTERY RAW
COMMUNICATION
UHF, X-BAND, S-BAND (OPTIONAL), CCSDS COMPLIANT
PAYLOAD POWER
48W

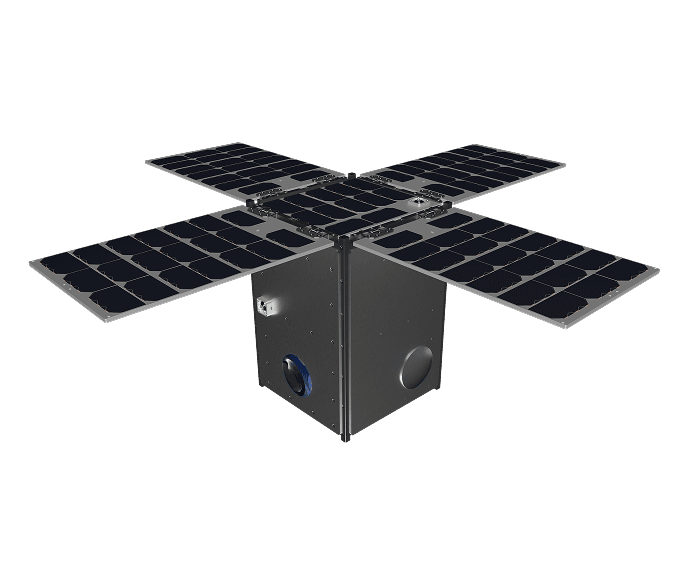

AX-12
AX-12
Form Factor
12/16U CubeSat
Payload Volume
10U
For demanding missions with high payload and power requirements:
OBC
SMARTFUSION2, ARM CORTEX M3 / POLARFIRE OBC
POWER BUSES
3.3V, 5V, CUSTOMIZABLE 6–12V + BATTERY RAW
COMMUNICATION
UHF, X-BAND, K-BAND
PAYLOAD POWER
48W

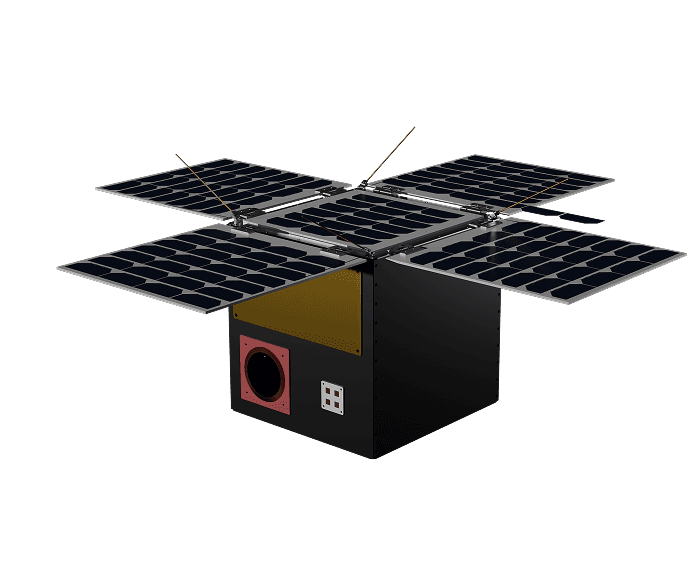

AX-27
AX-27
Form Factor
27U CubeSat
Payload Volume
20U
Built with modular, scalable, reconfigurable architecture, meets defense standards:
OBC
POLAR FIRE
POWER BUSES
3.3V, 5V, CUSTOMIZABLE 5–12V, CUSTOMIZABLE 12–28V + BATTERY RAW
COMMUNICATION
UHF, X-BAND, S-BAND (OPTIONAL), K-BAND
PAYLOAD POWER
60W

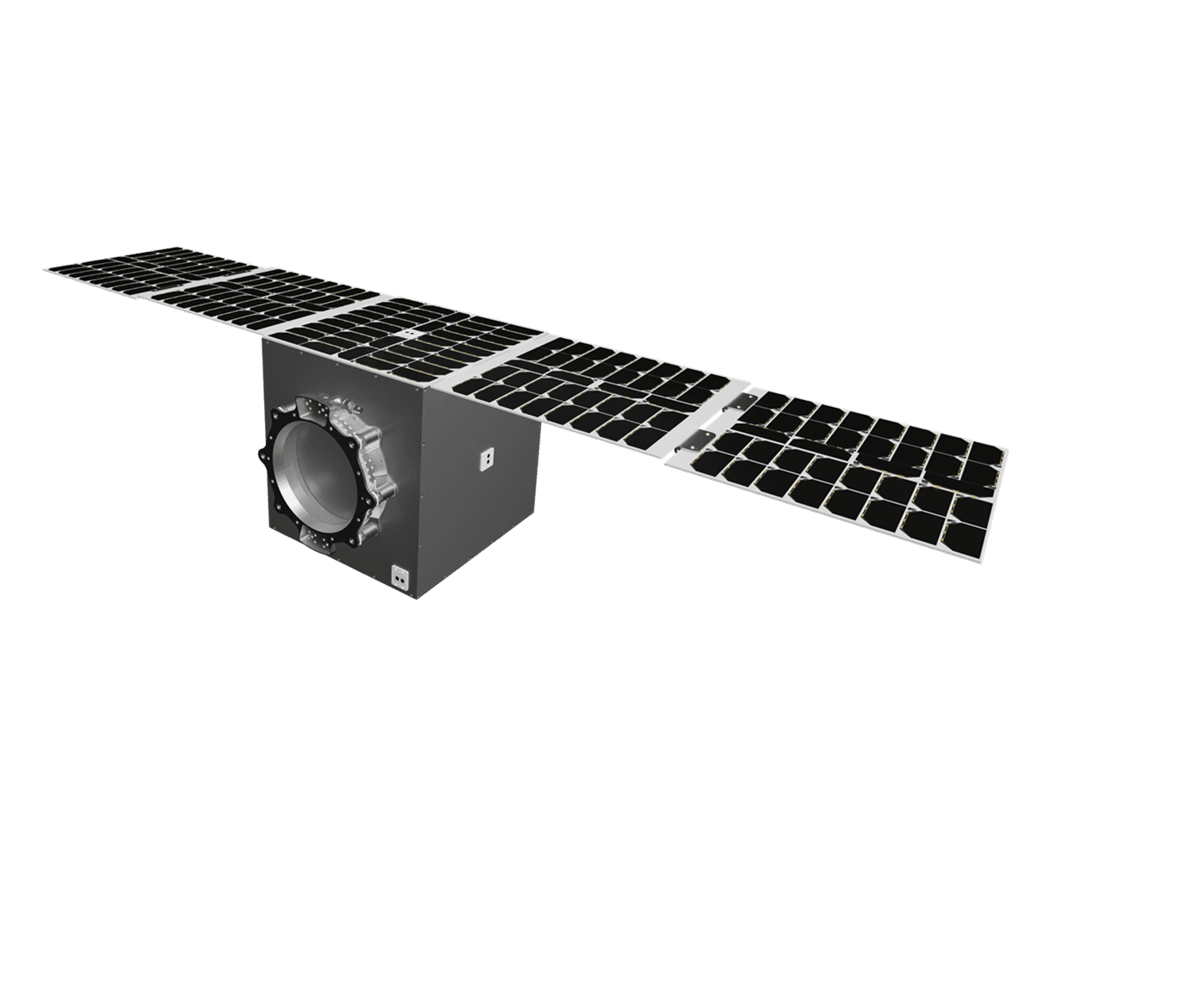

NX-50
NX-50
Form Factor
Customizable MicroSat
Payload Volume
Customizable
Built with modular, scalable, reconfigurable architecture, meets defense standards:
OBC
POLAR FIRE
POWER BUSES
3.3V, 5V, CUSTOMIZABLE 6-28V
COMMUNICATION
UHF, X-BAND, S-BAND (OPTIONAL), K-BAND
PAYLOAD POWER
100W
