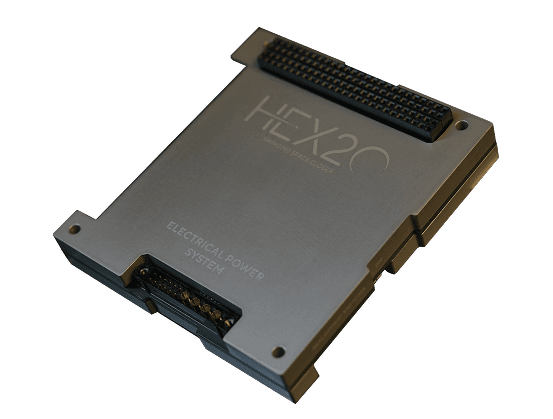

eps-840v

Specifications

Bus Voltage

8.4V (Nominal) can be configured on request

Output Channels

  • Channel1: 3.3V channel at 1A

  • Channel2: 1 x 5V – 6V channel at 2A

  • Channel3: 3 x 12V channel at 4A with individual switches

Maximum Power Point Tracking (MPPT)

  • 4 channel input from Solar Panels

  • Input Voltage: >=10V

  • Output Voltage: Configuration dependant

  • Maximum output current: 2A

Communication with C&DH

4 x SPI channels

Other Features

  • Voltage, Current and Temperature (VIT) measurement

  • Satellite deployment sensing

  • Channels for battery heater

  • Over charging protection for batteries

  • Over current cut-off for all output channels

Dimensions

PC104 Form Factor

Mass

<100g
