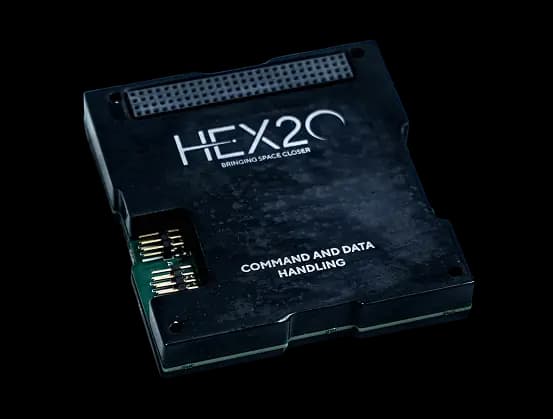

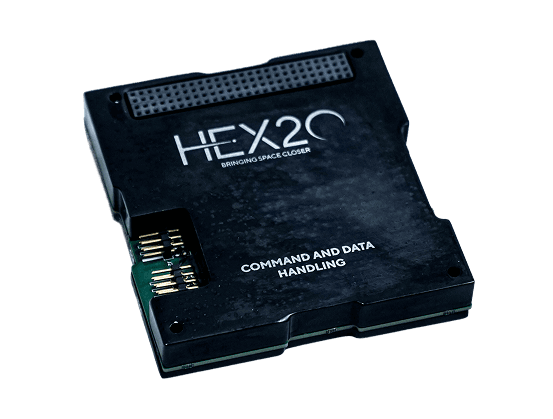

Command and Data Handling AX
Command and Data Handling AX
PROCESSOR
SMARTFUSION 2 FPGA SOCSUPPLY VOLTAGE
3.3VDIMENSIONS
PC104MASS
<100G

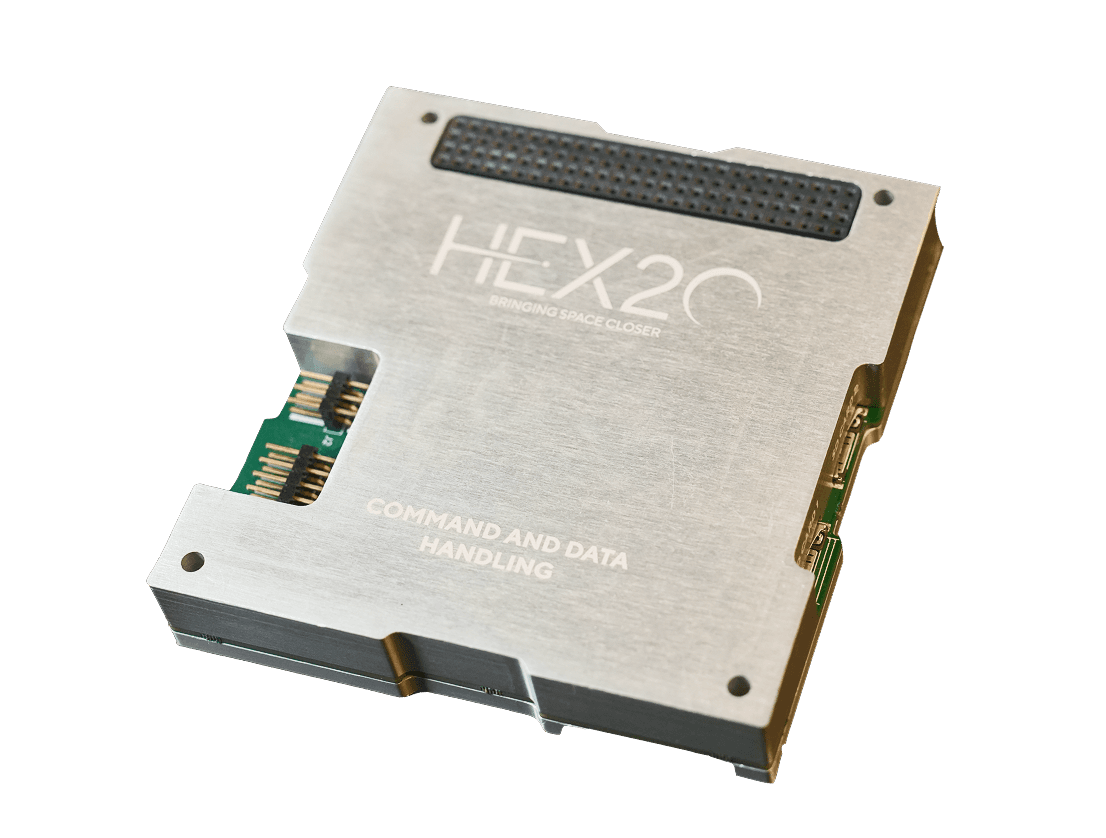

Command and Data Handling NX
Command and Data Handling NX
PROCESSOR
1 × E51 CORE: RISC-V RV64IMAC (BOOT/ MONITOR CORESUPPLY VOLTAGE
3.3VPOWER
<1.5WMASS
<150G

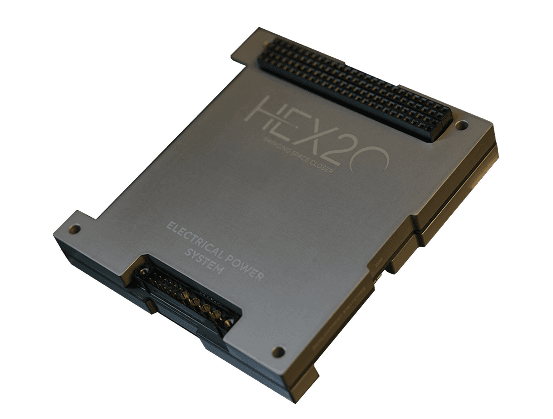

Electrical Power Subsystem (EPS 840)
Electrical Power Subsystem (EPS 840)
BUS VOLTAGE
8.4V (NOMINAL) CAN BE CONFIGURED ON REQUESTCOMMUNICATION WITH C&DH
4 X SPI CHANNELSDIMENSIONS
PC104MASS
<100G

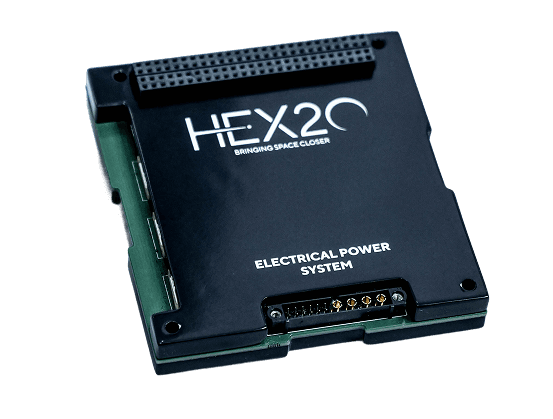

Electrical Power Subsystem (EPS 168)
Electrical Power Subsystem (EPS 168)
BUS VOLTAGE
16.8V (NOMINAL) CAN BE CONFIGURED ON REQUESTCOMMUNICATION WITH C&DH
3 X SPI CHANNELSMAXIMUM POWER POINT TRACKING (MPPT)
4 CHANNELS INPUT FROM SOLAR PANELOTHER FEATURES
VOLTAGE, CURRENT AND TEMPERATURE

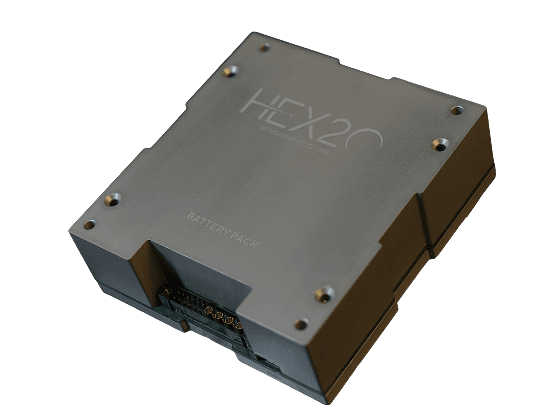

Battery Pack 100W
Battery Pack 100W
BUS VOLTAGE
8.4V (STANDARD) OR CAN BE CONFIGUREDREFERRED BATTERY
NCR18650BBattery Configuration
2S2P (STANDARD) OR CAN BE CONFIGUREDDIMENSIONS
PC 104

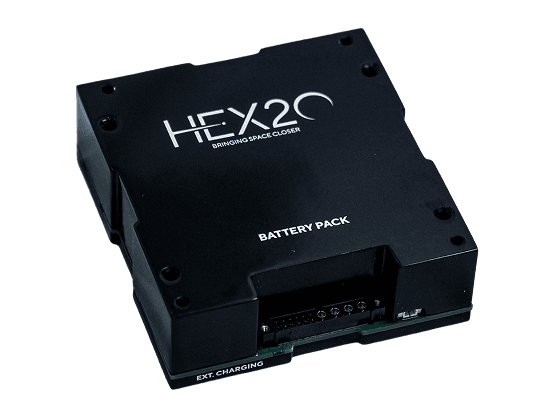

Battery Pack 150W
Battery Pack 150W
BUS VOLTAGE
16.8V (STANDARD) OR CAN BE CONFIGUREDDIMENSIONS
PC104BATTERY CONFIGURATION
4S3P (STANDARD) OR CAN BE CONFIGUREDOPERATING TEMPERATURE
0°C to 65°C

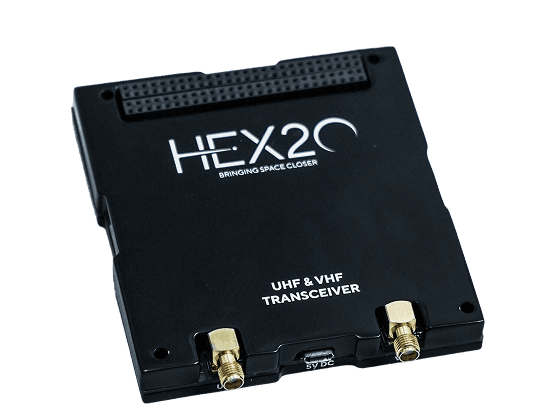

UHF-VHF Transceiver
UHF-VHF Transceiver
VHF FREQUENCY RANGE
'144-146 MHZ' (CONFIGURABLE)RF TRANSMITTER POWER OUTPUT
1W/30DBM OR 2W/33DBMUHF FREQUENCY RANGE
435-438MHZ (CONFIGURABLE)POWER SUPPLY
5.0 VDC & 3.3V DC

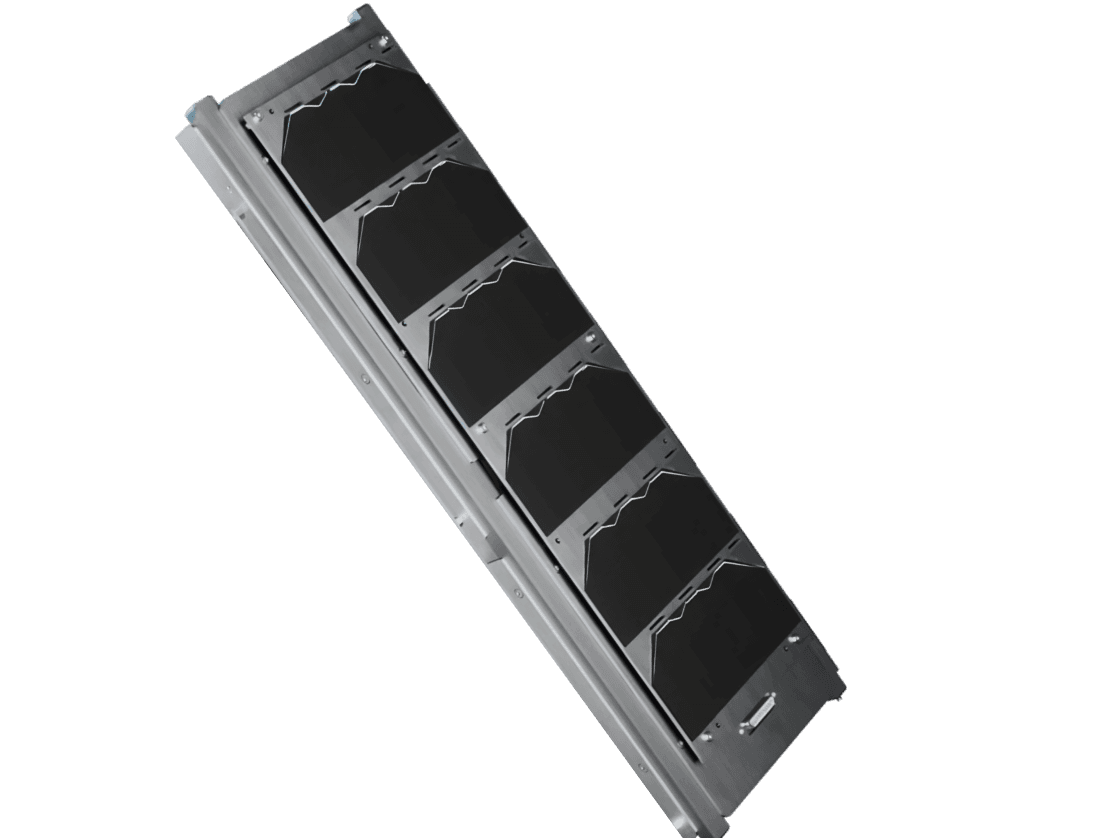

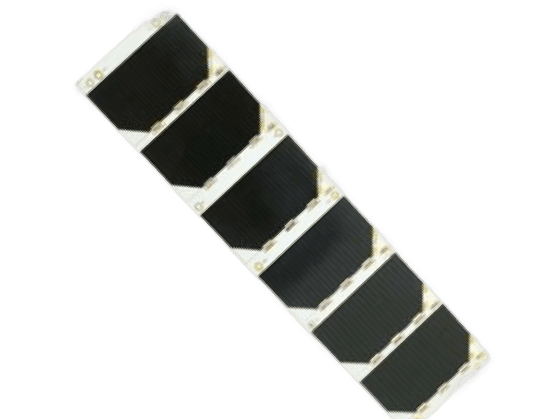

Solar Panels
Solar Panels
POWER
6W PER PANEL (CUSTOMIZABLE AS PER SPACECRAFT)OPERATING TEMPERATURE
-30°C to 85°CSOLAR CELLS
AZURESPACE, OCE, ET SPACE POWERDIMENSIONS
40mm x 80mm x 0.1mm
