Generic design suitable for multiple projects. Not hard-wired for a single mission.
6 nos PC-104 slots with full one-to-one I/O pin mapping. (CDH, EPS, COMM’s, Interface Card & 2 spares)
2 nos PC-104 connectors for bus probing, voltage measurement & debugging.
2 nos dummy PC-104 outline for mounting components like battery stack, ADCS.
1 * Deployment Toggle Switch, 1 * RBF Switch, 1 * Spare Switch.
2 * Solar panel deployment LED indicator & load, 1 * Power LED indicator.
2 * SMA-SMA Pass-through for VHF/UHF antenna with 30dB Attenuator.
Connector for Solar array simulator & external battery charging.

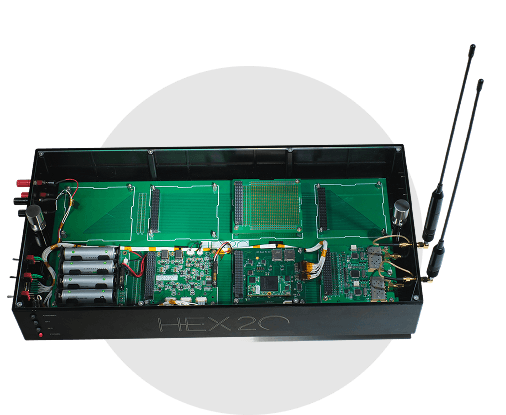

Flatsat contains
1 * Command & Data Handling Board (CDH)
1 * Electrical Power System (EPS)
1 * Ground station simulator (UHF)
1 * Transceiver board (UHF)
1* Battery Board (4x battery holder) - extendable up to 2 boards
1* Protoboard (Generic board for prototyping)
