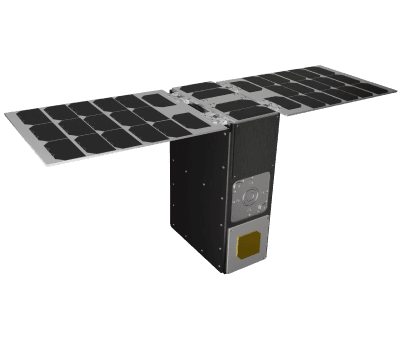

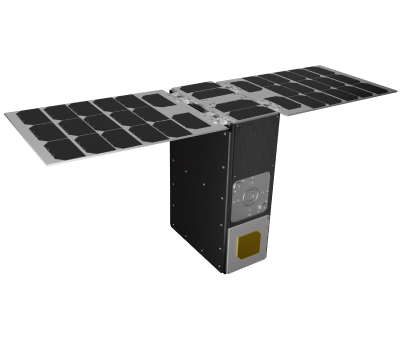

AX-06

About the satelite

Optimized for general-purpose missions with balanced power and payload capacity.

• STRUCTURAL DIMENSIONS

  100mm * 226.3mm * 366mm

• COMMUNICATION

  UHF, X-BAND, S-BAND (OPTIONAL), CCSDS COMPLIANT

• INTERFACES

  I2C, UART, RS232, RS422, SPI, LVDS, CAN

• DATA STORAGE

  16GB

• AVAILABLE PAYLOAD MASS

  6KG

• OBC

  SMARTFUSION2, ARM CORTEX M3

• POWER BUSES

  3.3V, 5V, CUSTOMIZABLE 5–12V + BATTERY RAW

• PAYLOAD VOLUME

  3U

• Telemetry Data Rate

  • 2.4-19.2 KBPS  (UHF WITH GFSK/GMSK  MODULATION SCHEME)
  • UPTO 10MBPS  ( SBAND WITH BPSK,QPSK,OQPSK)
  • UPTO 200 MBPS  (XBAND WITH GMSK,BPSK,QPSK,8-PSK,16-APSK)

• PAYLOAD POWER

  48W
