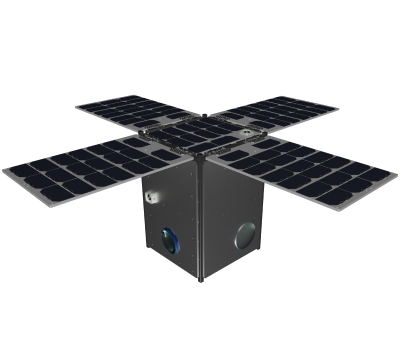

AX-12

About the satelite

Optimized for general-purpose missions with balanced power and payload capacity.

• STRUCTURAL DIMENSIONS

  226.3mm * 226.3mm * 226.3mm

• COMMUNICATION

  UHF, X-Band, K-Band

• INTERFACES

  I2C, UART, RS232, RS422, SPI, LVDS, CAN

• DATA STORAGE

  64GB

• AVAILABLE PAYLOAD MASS

  12KG

• OBC

  SMARTFUSION2, ARM CORTEX M3 / POLARFIRE OBC

• POWER BUSES

  3.3V, 5V, CUSTOMIZABLE 6–12V + BATTERY RAW

• PAYLOAD VOLUME

  6U

• PAYLOAD POWER

  48W

• Telemetry Data Rate

  • 2.4-19.2 KBPS (UHF WITH GFSK/GMSK MODULATION SCHEME)
  • UPTO 10MBPS (SBAND WITH BPSK,QPSK,OQPSK)
  • UPTO 200 MBPS (XBAND WITH GMSK,BPSK,QPSK,8-PSK,16-APSK)
  • UPTO 250MBPS (K BAND QPSK,8-PSK,16-APSK,32-APSK)
