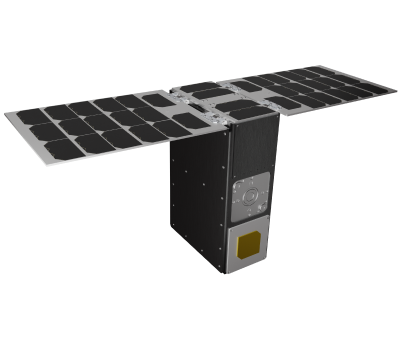

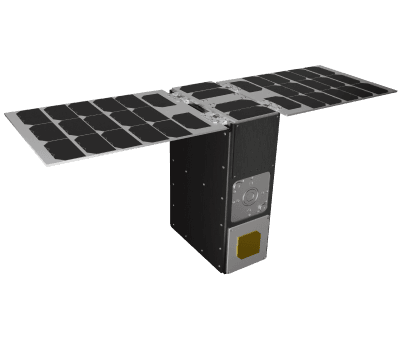

AX-06

About the satelite

Optimized for general-purpose missions with balanced power and payload capacity.

• Structural Dimensions

  100mm * 226.3mm * 366mm

• Communication

  UHF, X-Band, S-Band (optional), CCSDS Compliant

• Interfaces

  I2C, UART, RS232, RS422, SPI, LVDS, CAN

• Data Storage

  16GB

• Available Payload Mass

  6kg

• OBC

  SmartFusion2, ARM Cortex M3

• Power Buses

  3.3V, 5V, CUSTOMIZABLE 5–12V + BATTERY RAW

• Payload Volume

  3U

• Telemetry Data Rate

  • 2.4-19.2 kbps  (UHF with GFSK/GMSK  modulation scheme)
  • Upto 10Mbps  ( Sband with BPSK,QPSK,OQPSK)
  • Upto 200 Mbps  (XBand with GMSK,BPSK,QPSK,8-PSK,16-APSK)

• Payload Power

  48W
