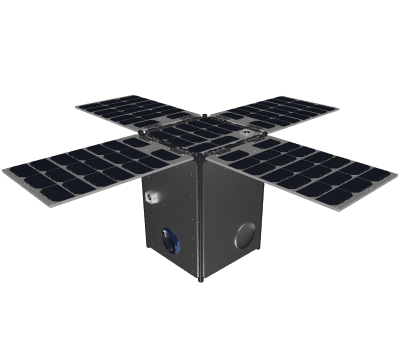

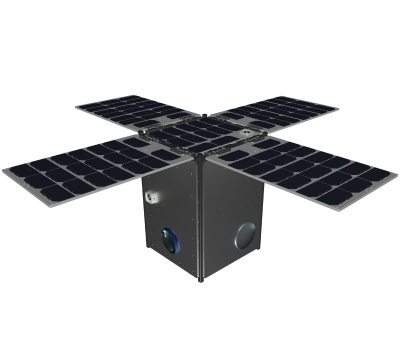

AX-12

About the satelite

Optimized for general-purpose missions with balanced power and payload capacity.

• Structural Dimensions

  226.3mm * 226.3mm * 226.3mm

• Communication

  UHF, X-Band, K-Band

• Interfaces

  I2C, UART, RS232, RS422, SPI, LVDS, CAN

• Data Storage

  64GB

• Available Payload Mass

  12kg

• OBC

  SmartFusion2, ARM Cortex M3 / PolarFire OBC

• Power Buses

  3.3V, 5V, customizable 6–12V + Battery raw

• Payload Volume

  6U

• Payload Power

  48W

• Telemetry Data Rate

  • 2.4-19.2 kbps (UHF with GFSK/GMSK modulation scheme)
  • Upto 10Mbps (Sband with BPSK,QPSK,OQPSK)
  • Upto 200 Mbps (XBand with GMSK,BPSK,QPSK,8-PSK,16-APSK)
  • Upto 250Mbps (K Band QPSK,8-PSK,16-APSK,32-APSK)
