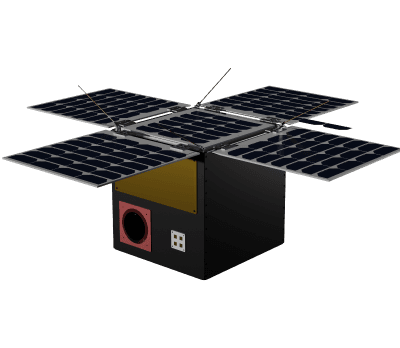

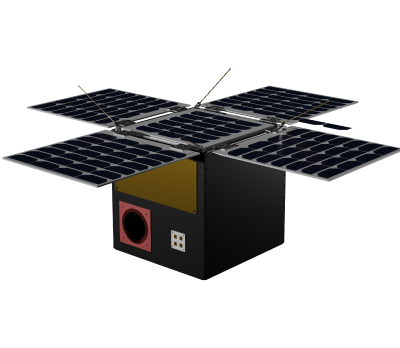

AX-27

About the satelite

Optimized for general-purpose missions with balanced power and payload capacity.

• Structural Dimensions

  100mm * 100mm * 340.5mm

• Communication

  UHF, X-Band, S-Band (optional),K-Band

• Interfaces

  I2C, UART, RS232, RS422, SPI, LVDS, CAN

• Data Storage

  128GB

• Available Payload Mass

  36kg

• OBC

  Polar Fire

• Power Buses

  3.3V, 5V, CUSTOMIZABLE 5–12V, CUSTOMIZABLE 12–28V + BATTERY RAW

• Payload Volume

  18U

• Payload Power

  60W

• Telemetry Data Rate

  • 19.2 KBPS (UHF WITH GFSK/GMSK MODULATION SCHEME)
  • UPTO 10MBPS (SBAND WITH BPSK,QPSK,OQPSK)
  • UPTO 200 MBPS (XBAND WITH GMSK,BPSK,QPSK,8-PSK,16-APSK)
  • UPTO 250MBPS (K BAND QPSK,8-PSK,16-APSK,32-APSK)
