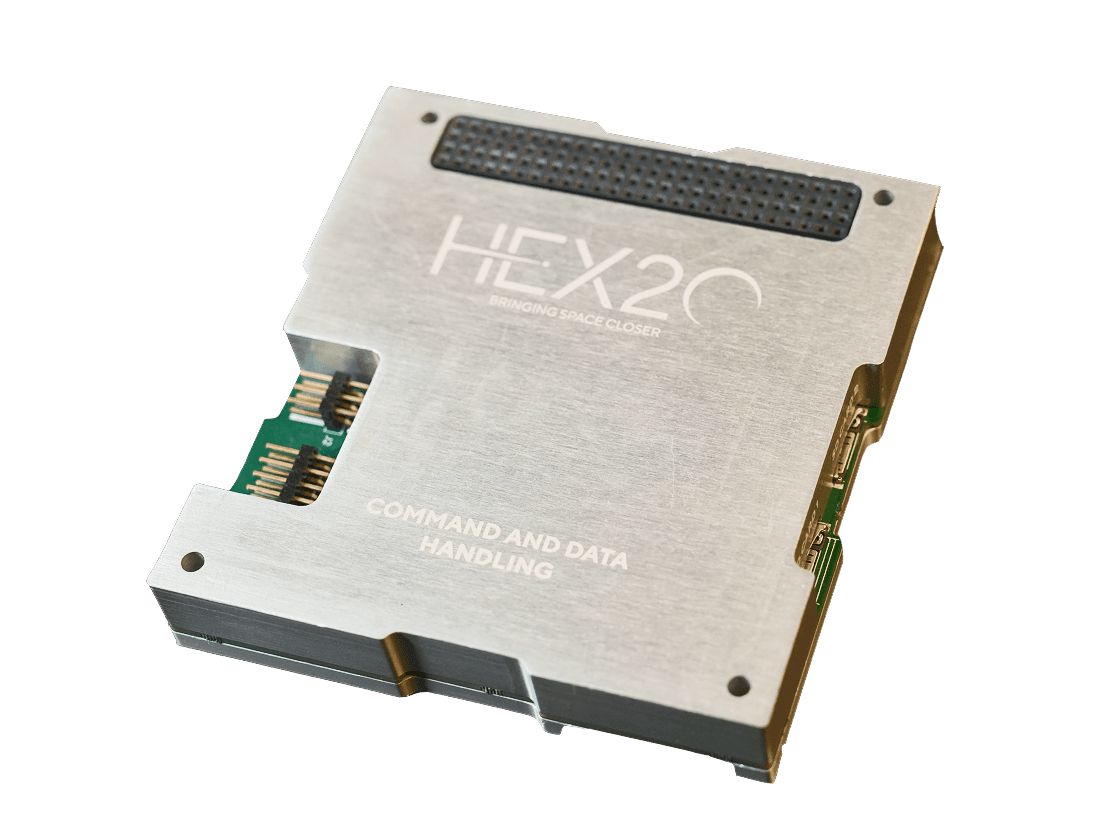

Specification
PROCESSOR
1 × E51 CORE: RISC-V RV64IMAC (BOOT/ MONITOR CORE)
PROCESSOR CLOCK
625 MHZ
PROCESSOR CACHE/ RAM
2 MB
EXTERNAL RAM
1 GB (LPDDR4)
ON BOARD COMMUNICATION INTERFACES(LOW SPEED)
2 X I2C
2 X SPI
2 X TTC UART
2 X RS422
9 X GPIOS
12 X GPIOS (CONFIGURABLE TO ANY COMMUNICATION PROTOCOL)
ON BOARD PERIPHERALS
1 X IMU
1 X TEMPERATURE SENSOR
1 X 8MB SPI FLASH
1 X 16GB
32GB FLASH ONFI COMPATIBLE
EXTERNAL WATCHDOG TIMER
DEBUG INTERFACE
1 X UART
1 X JTAG
SUPPLY VOLTAGE
3.3V
POWER
<1.5W
MASS
<150G
OPERATING TEMPERATURE
-30°C TO 85°C
